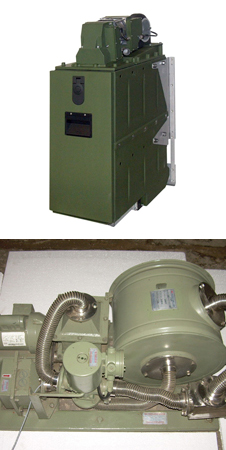

We have an exlusive tieup with M/s. Beth-El Industires,Israel, the world fore-runners in the field of NBC protection. The NBC ventilation system is used to supply clean air under battlefield environments for mobile shelters and for static applications.
The system includes over pressurising & warning systems.

• The NBC Ventilation system acts both as an Air Supply as well as Air Filtration / Purifier System.
• It is custom designed as per total air requirement for the volume of accommodation, the number of people and keeping in view the oxygen depletion rate as also the Carbon-di-oxide accumulation.
• The versatility of the design enables it to be used both in static as well as mobile applications.
• The system has a multi stage filtration mechanism which incorporates a pre-filter stage,a HEPA stage and a 99.97% efficient activated charcoal filter which keeps out contamination down to 0.30 microns.
• The system also offers a cyclonic filter in additiont to the above filters.

Salient Features

• Fully Mobile with Mounting Frame
• Quick Switch-Over from 'Dust' to 'NBC' Mode Remotely controlled.
• Includes Filters for Dust, Coarse 10 microns, Fine 2 micron and 0.3 microns ( Only in NBC Mode )
• Power Requirement AC Single / Three Phase or DC
• Very compact and light weight (only 9 kg)
• NBC-filters can be scaled (1-6) as per air flow requirements
• Extremely long filter life compared to standard NBC-filters
• High active surface area
• High absorption and higher protection with a lower volume

Technical Specifications

■	Air Supply	100 to 850 cu m per hour
■	Dust Filteration	Down to 2 micron having 98% efficiency
■	Composite Filter	Down to 0.3 micron and aerosols, Filteration Efficiency of 99.97%
■	Blower	Discharge 100-850 cu m per hour
■	Motor	IP 55 Protection and 'F' Type Insulation
■	By Pass Valve	Solenoid 3 way valve
■	Temperature & Weather	Stainless Steel Flexible Ducts
■	Mounting	Frame mounted on Shock mounts
